Electric Assistance for our Trikes

website header

Fits easily into our Standard Chassis

We are offering 2 options for electrically assisting your Maximus trike. Soon to be announced will be our CMDrive™
spec and features. Our speciality vehicle is the TractionDrive™ Chassis upgrade - details are shown here

Heavy loads up steep hills? No problem with CM TractionDrive™ Electric Assistance


Designed for getting 250Kg up steep hills. The CM TractionDrive™ Maximus is simply the
best money can buy. This is combined with a unique transmission drive including the
Double Freewheel Transaxle combining rider and high torque Lynch motor power, through
differential drive, to the rear wheels. Designed to get the vehicle, rider and a 250 kg
load up a 20% hill. A formidable electric assisted workhorse






Pre-production prototypes: -


  •
Street legal 12-Volt System
  •

Three terrain-gearing options:
Flat, undulating and steep
  •
Max Spec 72Ah sealed deep cycle Lead Acid AGM
Battery has extremely high Energy/Weight density
and excellent overall performance
  •
Pedal Sensor allows hill starts
  •
Up to 30 mile or 48 Km range
  •
Supplied with fast three stage fully automatic charger
  •
Standard DIN power connectors
  •
4.5M charging leads
  •
PWM (Pulse Width Modulation) motor controller
enabling maximum energy efficiency
  •
Twist-grip throttle control
  •
Intelligent battery “Fuel Gauge”
  •
Auto battery Cut-off when discharged
  •
Fused control and power cables
  •
Ignition and removable isolator key
  •
All cables have maximum efficiency and lifespan
  •
Electric components rubber isolated from vibration
  •
Recharge from Mains*
  •
Economical – pence/cents per day


*
Obtain your mains electricity from a renewable energy supplier for total emission-free use



Logo


A to B magazine


Richard Ballantine 'Richard's 21st Century Bicycle Book'

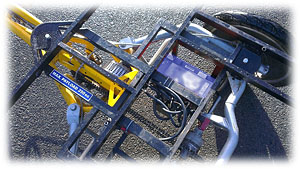

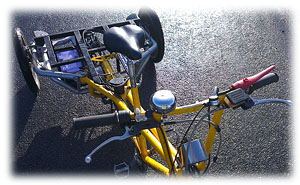

Original TractionDrive™ type trike chassis for reference: -

If the vehicles are to be used on public roads, it is the users responsibility
to check the local road traffic regulations
